Droppers

PINE 27.2

Regular price €222,95 Save €-222,95
/
Tax included.

Need a lever?

You'll choose one in the next step.

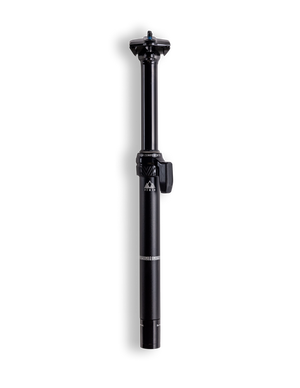

The Pine Dropper is your go to post for bikes of all different persuasions, whether it be your classic hardtail, XC bike, gravel grinder, fatty or cyclocross rig - this 27.2mm post continues the tradition of bringing reliable dropper posts to bikes with skinnier seat tubes.

  • Routing: External

View Measurements

Get your gear for your weekend ride. We offer free expedited shipping to the Contiguous U.S on orders of $100 or more.

Do we ship internationally? Yes, we do! Check out our international shipping page here.

We've always got your back. If anything goes wrong, we're here to do everything we can to ensure you're taken care of. All PNW products come with a lifetime warranty.

FEATURES

  • TIDY EXTERNAL ROUTING

    For bikes without internal cable routing, the Pine keeps your program tight, keeping the cable out of the way during actuation.

  • WEATHERPOOF SEALED AIR CARTRIDGE

    Like all of our droppers, the Pine rocks a sealed air cartridge that is known for its robust performance in below freezing temperatures.

  • JACK OF ALL TRADES

    External routing and a 27.2mm diameter ensure the Pine will fit just about any frame (using a shim on larger diameter seat tubes).

TIDY EXTERNAL ROUTING

For bikes without internal cable routing, the Pine keeps your program tight, keeping the cable out of the way during actuation.

WEATHERPOOF SEALED AIR CARTRIDGE

Like all of our droppers, the Pine rocks a sealed air cartridge that is known for its robust performance in below freezing temperatures.

JACK OF ALL TRADES

External routing and a 27.2mm diameter ensure the Pine will fit just about any frame (using a shim on larger diameter seat tubes).

MEASUREMENTS

ATravel90mm110mm
BSeat Collar to Center of Rails150mm170mm
CTotal Length366mm394mm
DMin. Insertion Length95mm120mm
EFull Insertion Length 216mm224mm
*Weight 490g
530g
View Dropper Size Calculator

QUESTIONS?

Routing Method: External

Diameters: 27.2mm

Travel: 90mm, 110mm

Stanchion Diameter: 22mm

Seatpost Material: 7075 Alloy

Lever Compatability: Compatible with all PNW levers and most cable actuated levers from other brands.

Cable and Housing: Cable and housing included only with the purchase of a lever kit

Like most of us, PNW dropper posts need a little TLC to work their best. This service can be done at home, but if you're not feeling that grease stain life, we can take care of it for you. Our service program treats your PNW dropper post for regular wear and tear. Learn More >>>

Because the Pine is externally routed it's compatible with a lot of frames. Next step is the measurement part! Need help determining the best dropper for you? Click here >>>

Dropper posts do not include cable and housing.

As riding frequency and conditions vary, we do not have a strict service interval. Instead, we recommend servicing your post if it starts to feel sticky/slows down. When it does come down to service it is a quick and easy, at home process. Check out our service video's here.

The Cascade and Pine Dropper Posts are essentially identical, externally-routed posts, with the only difference being the seat posts diameters offered in each. The Cascade Dropper Post fits frames with seat tube diameters of 30.9mm or 31.6mm. The Pine Dropper Post is specific to frames with 27.2mm seat tube diameters.
